Genie Cairo sample
Two examples from the archived GNOME Wiki page Projects/Genie/CairoSample: a GTK 3 window that draws Cairo paths, and a GTK+ 2 shaped transparent “clock” window (legacy APIs: expose_event, Gdk.Pixmap, input_shape_combine_mask, and so on).
GTK+ 2 second example
The shaped clock targets GTK+ 2 and old GDK integration. It is preserved here as documentation; porting it to GTK 3 or 4 requires substantial rewrites (draw callbacks, input shape, rgba visuals).
Drawing primitives (GTK+ 3)

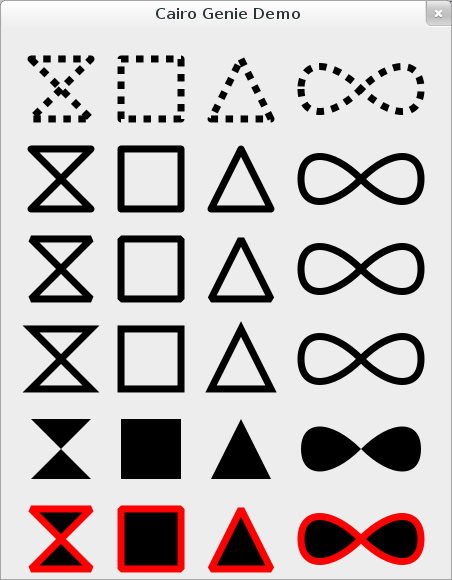

Running cairosample.gs opens a window titled Cairo Genie Demo with rows of stroked and filled paths (bowtie, square, triangle, and lemniscate-like shape), illustrating dashes, line joins, stroke, fill, and a red outline on the last row:
Save as cairosample.gs.
genie
uses
Gtk
Cairo
class CairoSample : Gtk.Window
const private SIZE : int = 30
construct ()
self.title = "Cairo Genie Demo"
self.destroy.connect (Gtk.main_quit)
set_default_size (450, 550)
create_widgets ()
def private create_widgets ()
var drawing_area = new DrawingArea ()
drawing_area.draw.connect (on_draw)
add (drawing_area)
def private on_draw (da : Widget, ctx : Context) : bool
ctx.set_source_rgb (0, 0, 0)
ctx.set_line_width (SIZE / 4)
ctx.set_tolerance (0.1)
ctx.set_line_join (LineJoin.ROUND)
dbl_arr : array of double = {SIZE / 4.0, SIZE / 4.0}
ctx.set_dash (dbl_arr, 0)
stroke_shapes (ctx, 0, 0)
ctx.set_dash (null, 0)
stroke_shapes (ctx, 0, 3 * SIZE)
ctx.set_line_join (LineJoin.BEVEL)
stroke_shapes (ctx, 0, 6 * SIZE)
ctx.set_line_join (LineJoin.MITER)
stroke_shapes (ctx, 0, 9 * SIZE)
fill_shapes (ctx, 0, 12 * SIZE)
ctx.set_line_join (LineJoin.BEVEL)
fill_shapes (ctx, 0, 15 * SIZE)
ctx.set_source_rgb (1, 0, 0)
stroke_shapes (ctx, 0, 15 * SIZE)
return true
def private stroke_shapes (ctx : Context, x : int, y : int)
self.draw_shapes (ctx, x, y, ctx.stroke)
def private fill_shapes (ctx : Context, x : int, y : int)
self.draw_shapes (ctx, x, y, ctx.fill)
delegate private DrawMethod ()
def private draw_shapes (ctx : Context, x : int, y : int, draw_method : DrawMethod)
ctx.save ()
ctx.new_path ()
ctx.translate (x + SIZE, y + SIZE)
bowtie (ctx)
draw_method ()
ctx.new_path ()
ctx.translate (3 * SIZE, 0)
square (ctx)
draw_method ()
ctx.new_path ()
ctx.translate (3 * SIZE, 0)
triangle (ctx)
draw_method ()
ctx.new_path ()
ctx.translate (3 * SIZE, 0)
inf (ctx)
draw_method ()
ctx.restore ()
def private triangle (ctx : Context)
ctx.move_to (SIZE, 0)
ctx.rel_line_to (SIZE, 2 * SIZE)
ctx.rel_line_to (-2 * SIZE, 0)
ctx.close_path ()
def private square (ctx : Context)
ctx.move_to (0, 0)
ctx.rel_line_to (2 * SIZE, 0)
ctx.rel_line_to (0, 2 * SIZE)
ctx.rel_line_to (-2 * SIZE, 0)
ctx.close_path ()
def private bowtie (ctx : Context)
ctx.move_to (0, 0)
ctx.rel_line_to (2 * SIZE, 2 * SIZE)
ctx.rel_line_to (-2 * SIZE, 0)
ctx.rel_line_to (2 * SIZE, -2 * SIZE)
ctx.close_path ()
def private inf (ctx : Context)
ctx.move_to (0, SIZE)
ctx.rel_curve_to (0, SIZE, SIZE, SIZE, 2 * SIZE, 0)
ctx.rel_curve_to (SIZE, -SIZE, 2 * SIZE, -SIZE, 2 * SIZE, 0)
ctx.rel_curve_to (0, SIZE, -SIZE, SIZE, -2 * SIZE, 0)
ctx.rel_curve_to (-SIZE, -SIZE, -2 * SIZE, -SIZE, -2 * SIZE, 0)
ctx.close_path ()
init
Gtk.init (ref args)
var cairo_sample = new CairoSample ()
cairo_sample.show_all ()
Gtk.main ()Compile and run
shell
valac --pkg gtk+-3.0 cairosample.gs
./cairosampleShaped window (GTK+ 2)
Save as cairo-shaped.gs. Requires GTK+ 2, GDK 2, and Cairo.
genie
uses
Gtk
Cairo
Gdk
// Shaped, transparent clock window (GTK+ 2). Legacy GTK+ 2 / GDK APIs.
class CairoShaped : Gtk.Window
inside : bool = false
construct ()
self.title = "Cairo Vala Demo"
set_default_size (200, 200)
this.skip_taskbar_hint = true
this.decorated = false
this.app_paintable = true
set_colormap (this.screen.get_rgba_colormap ())
add_events (Gdk.EventMask.BUTTON_PRESS_MASK)
add_events (Gdk.EventMask.ENTER_NOTIFY_MASK)
add_events (Gdk.EventMask.LEAVE_NOTIFY_MASK)
self.enter_notify_event.connect (enter_event)
self.leave_notify_event.connect (leave_event)
self.button_press_event.connect (handle_btn_press)
this.expose_event.connect (on_expose)
this.destroy.connect (Gtk.main_quit)
def handle_btn_press (e : Gdk.EventButton) : bool
begin_move_drag ((int) e.button, (int) e.x_root, (int) e.y_root, e.time)
return true
def leave_event () : bool
self.inside = false
self.queue_draw ()
return true
def enter_event () : bool
self.inside = true
self.queue_draw ()
return true
def private on_expose (da : Widget, event : Gdk.EventExpose) : bool
var ctx = Gdk.cairo_create (da.window)
ctx.set_source_rgba (1.0, 1.0, 1.0, 0.0)
ctx.set_operator (Cairo.Operator.SOURCE)
ctx.paint ()
radius : float = 100
var p = new Cairo.Pattern.radial (100, 100, 0, 100, 100, 100)
if inside
p.add_color_stop_rgba (0.0, c (10), c (190), c (10), 1.0)
p.add_color_stop_rgba (0.8, c (10), c (190), c (10), 0.7)
p.add_color_stop_rgba (1.0, c (10), c (190), c (10), 0.5)
else
p.add_color_stop_rgba (0.0, c (10), c (10), c (190), 1.0)
p.add_color_stop_rgba (0.8, c (10), c (10), c (190), 0.7)
p.add_color_stop_rgba (1.0, c (10), c (10), c (190), 0.5)
ctx.set_source (p)
ctx.arc (100, 100, radius, 0, 2.0 * 3.14)
ctx.fill ()
ctx.stroke ()
if inside
ctx.set_source_rgba (0.0, 0.2, 0.6, 0.8)
else
ctx.set_source_rgba (c (226), c (119), c (214), 0.8)
for var i = 0 to 12
ctx.arc (100 + 90.0 * Math.cos (2.0 * 3.14 * (i / 12.0)),
100 + 90.0 * Math.sin (2.0 * 3.14 * (i / 12.0)),
5, 0, 2.0 * 3.14)
ctx.fill ()
ctx.stroke ()
ctx.move_to (100, 100)
ctx.set_source_rgba (0, 0, 0, 0.8)
var t = Time.local (time_t ())
hour : int = t.hour
minutes : int = t.minute
seconds : int = t.second
per_hour : double = (2 * 3.14) / 12
dh : double = (hour * per_hour) + ((per_hour / 60) * minutes)
dh += 2 * 3.14 / 4
ctx.set_line_width (0.05 * radius)
ctx.rel_line_to (-0.5 * radius * Math.cos (dh), -0.5 * radius * Math.sin (dh))
ctx.move_to (100, 100)
per_minute : double = (2 * 3.14) / 60
dm : double = minutes * per_minute
dm += 2 * 3.14 / 4
ctx.rel_line_to (-0.9 * radius * Math.cos (dm), -0.9 * radius * Math.sin (dm))
ctx.move_to (100, 100)
per_second : double = (2 * 3.14) / 60
ds : double = seconds * per_second
ds += 2 * 3.14 / 4
ctx.rel_line_to (-0.9 * radius * Math.cos (ds), -0.9 * radius * Math.sin (ds))
ctx.stroke ()
ctx.set_source_rgba (c (124), c (32), c (113), 0.7)
ctx.arc (100, 100, 0.1 * radius, 0, 2.0 * 3.14)
ctx.fill ()
ctx.stroke ()
var px = new Gdk.Pixmap (null, 200, 200, 1)
var pmcr = Gdk.cairo_create (px)
pmcr.set_source_rgba (1.0, 1.0, 1.0, 0.0)
pmcr.set_operator (Cairo.Operator.SOURCE)
pmcr.paint ()
pmcr.set_source_rgba (0, 0, 0, 1)
pmcr.arc (100, 100, 10, 0, 2.0 * 3.14)
pmcr.fill ()
pmcr.stroke ()
for var i = 0 to 12
pmcr.arc (100 + 90.0 * Math.cos (2.0 * 3.14 * (i / 12.0)),
100 + 90.0 * Math.sin (2.0 * 3.14 * (i / 12.0)),
5, 0, 2.0 * 3.14)
pmcr.fill ()
pmcr.stroke ()
input_shape_combine_mask ((Gdk.Bitmap*) px, 0, 0)
return true
def private c (val : int) : double
return val / 255.0
def updatedraw () : bool
self.queue_draw ()
return true
init
Gtk.init (ref args)
var cairo_sample = new CairoShaped ()
cairo_sample.show_all ()
Timeout.add_seconds (1, cairo_sample.updatedraw)
Gtk.main ()Compile and run
shell
valac --pkg gtk+-2.0 --pkg cairo --pkg gdk-2.0 cairo-shaped.gs
./cairo-shaped
